A GUI is a fantastic idea…​ But what should it be - SDL, wxWidgets, or Qt?

Choosing a GUI framework for a C++ audio project is a "fork in the road" moment. Each of these options pulls the project in a completely different architectural direction.

Since your course currently uses SDL, it’s the natural frontrunner, but here is how they stack up for a synth-building context:

  1. SDL (Simple DirectMedia Layer) - The "Low-Level" Choice Since you already introduced SDL in Tutorial 02, staying here is the path of least resistance.

Pros: It doesn’t "take over" your main() function as aggressively as the others. It’s perfect for custom-drawn knobs and sliders using simple shapes or bitmaps.

The "Audio" Fit: It’s great for creating visualizers (oscilloscopes or spectrum analyzers) because you have direct access to the pixel buffer or hardware-accelerated rendering.

Cons: It has no built-in "widgets" (buttons, text inputs). You have to build your own UI system from scratch or use a library like Dear ImGui.

  1. Qt - The "Professional/Industrial" Choice

Qt is the heavyweight champion. If you want your synth to look like a modern DAW (Digital Audio Workstation) or a commercial plugin, this is it.

Pros: Incredible documentation and a "What You See Is What You Get" (WYSIWYG) editor. It handles high-DPI scaling and complex layouts beautifully.

The "Audio" Fit: It’s overkill for a simple tutorial but excellent for teaching Signals and Slots, a C++ mechanism that perfectly mimics how patch cables work in a modular synth.

Cons: Huge binary size and a steep learning curve. It also requires the moc (Meta-Object Compiler), which adds a layer of "magic" that might hide the raw C++ logic you are trying to teach.

  1. wxWidgets - The "Native" Choice

wxWidgets uses the host operating system’s native controls (it looks like a Windows app on Windows, and a GTK app on Linux).

Pros: No "magic" pre-processors like Qt. It’s "pure" C++ in a very traditional sense.

Cons: It feels a bit dated. Styling custom, "cool-looking" synth knobs is significantly harder in wxWidgets than in SDL or Qt because it strives to look like a standard spreadsheet or file explorer.

Feature

SDL

Qt

wxWidgets

Learning Curve

Easy (if you know SDL)

Steep

Moderate

Look & Feel

Custom/Game-like

Modern/Slick

Native/Standard

Best For…​

Visualizers & Prototyping

Commercial Software

Traditional Desktop Apps

C++ Style

Procedural/Simple OOP

Heavy OOP & Macros

Traditional OOP

So, we choose Qt - let’s install the dependencies and the Qt Creator IDE

We start by simply installing Qt 5 plus dependencies (roughly 500 MB)…​

1

sudo apt install qtbase5-dev qtchooser qt5-qmake qtbase5-dev-tools qtcreator

The QTCreator

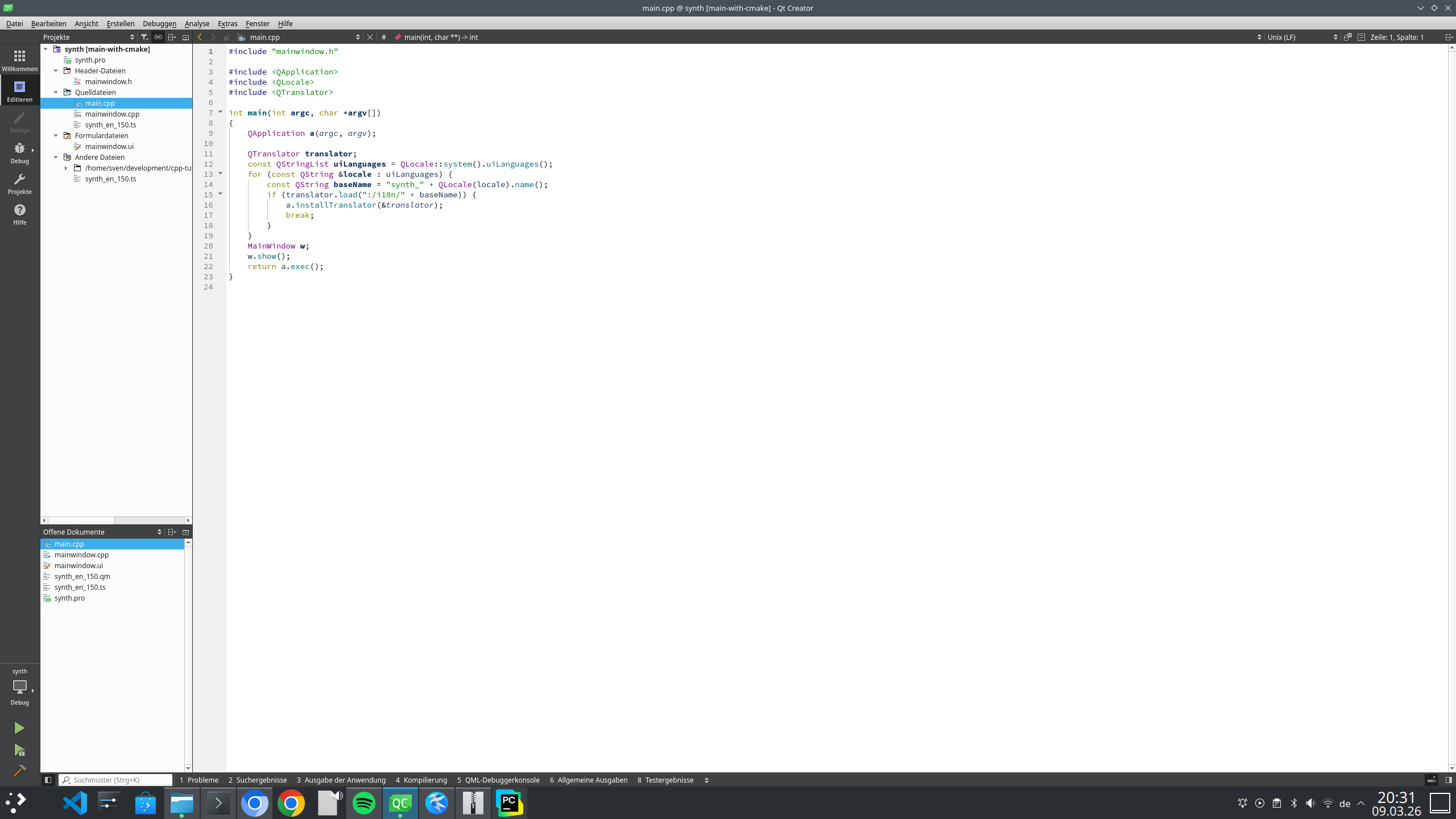

QtCreator Overview

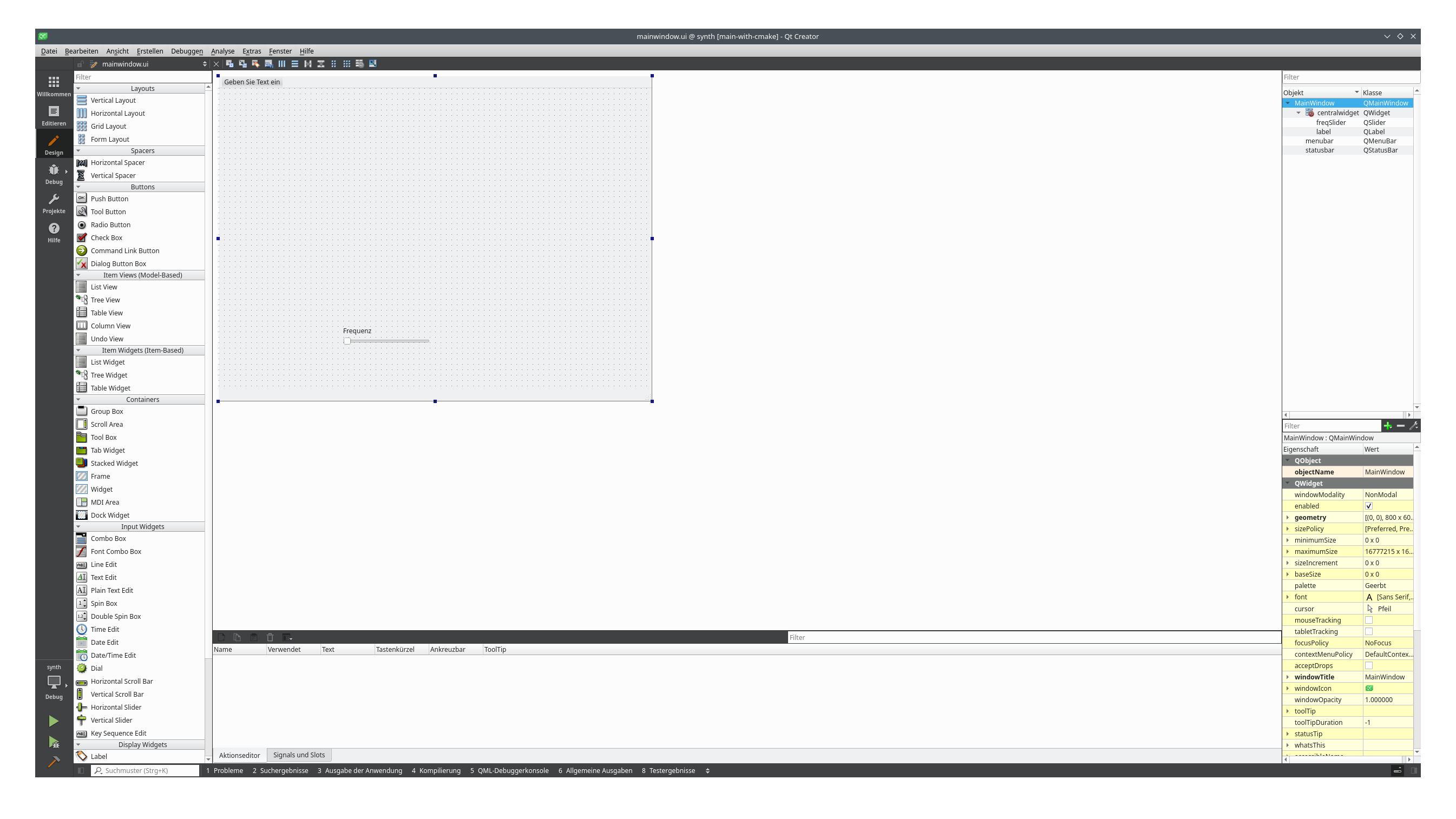

QtCreator Designer

The QTCreator allows us - for example to create our own UI …​.

We start with the simple *.pro(ject) file which is to be generated when creating a new project…​

synth.pro

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

QT       += core gui
QT       += multimedia
greaterThan(QT_MAJOR_VERSION, 4): QT += widgets

CONFIG += c++17

# You can make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0

SOURCES += \
    main.cpp \
    mainwindow.cpp

HEADERS += \
    mainwindow.h

FORMS += \
    mainwindow.ui

TRANSLATIONS += \
    synth_en_150.ts
CONFIG += lrelease
CONFIG += embed_translations

# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += target

The meta-object compiler (moc)

The Meta-Object Compiler, or moc, is the tooling that makes Qt more than just a standard C library. While C is powerful, it historically lacks introspection—the ability for a program to examine its own structure (like classes, methods, or properties) at runtime.

The moc handles this by generating additional C code that bridges the gap between standard C and Qt’s advanced features.

How It Works

The moc isn’t a replacement for your compiler (like GCC or Clang); it’s a pre-processor. Here is the typical workflow:

Scanning: The moc reads your C++ header files.

Detection: It looks for the Q_OBJECT macro. If it finds it, it knows this class needs "meta-powers."

Generation: It creates a new C++ file (usually named moc_filename.cpp) containing the meta-object code.

Compilation: Your standard compiler compiles both your original code and the generated moc code, linking them together into the final binary.

Key Features Enabled by moc Without the Meta-Object Compiler, the following core Qt features wouldn’t exist:

  1. Signals and Slots This is Qt’s signature way of letting objects communicate. Because standard C++ doesn’t have a built-in "signal" keyword, the moc generates the "glue code" required to look up functions by name and execute them when a signal is emitted.

  2. Introspection (Run-Time Type Information) You can ask a QObject about its class name, what signals it has, or what methods are available at runtime using metaObject(). This is much more descriptive than the standard C++ typeid.

  3. Properties The moc enables the Q_PROPERTY system, allowing you to treat class members like properties in languages like Python or C#. You can get/set values by string names, which is vital for Qt Quick (QML).

==

main.cpp

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

#include "mainwindow.h"

#include <QApplication>
#include <QLocale>
#include <QTranslator>

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);

    QTranslator translator;
    const QStringList uiLanguages = QLocale::system().uiLanguages();
    for (const QString &locale : uiLanguages) {
        const QString baseName = "synth_" + QLocale(locale).name();
        if (translator.load(":/i18n/" + baseName)) {
            a.installTranslator(&translator);
            break;
        }
    }
    MainWindow w;
    w.show();
    return a.exec();
}

mainwindow.h

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>
#include <QVector>
#include <QPointF>
#include <QtMath>
#include <QAudioOutput>
#include <QIODevice>

QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    MainWindow(QWidget *parent = nullptr);
    ~MainWindow();

private:
    Ui::MainWindow *ui;
    // In der mainwindow.h unter private:
    class AudioGenerator *m_generator;
    class QAudioOutput *m_audioOutput;

protected:
    void paintEvent(QPaintEvent *event) override; // This draws the waveform

private:
    QVector<QPointF> waveformPoints;
    float currentFreq = 440.0;
    void generateWaveform(); // Logic to calculate the sine wave
};

class AudioGenerator : public QIODevice {
    Q_OBJECT
public:
    // Konstruktor mit Parent, damit Qt den Speicher verwalten kann
    AudioGenerator(QObject *parent = nullptr) : QIODevice(parent) {}

    void setFrequency(float f) { m_frequency = f; }

    qint64 readData(char *data, qint64 maxlen) override {
        qint16 *samples = reinterpret_cast<qint16*>(data);
        int sampleCount = maxlen / sizeof(qint16);
        for (int i = 0; i < sampleCount; ++i) {
            float val = 8000.0 * qSin(m_phase);
            samples[i] = static_cast<qint16>(val);
            m_phase += 2.0 * M_PI * m_frequency / 44100.0;
            if (m_phase > 2.0 * M_PI) m_phase -= 2.0 * M_PI;
        }
        return maxlen;
    }

    qint64 writeData(const char *data, qint64 len) override {
        Q_UNUSED(data); Q_UNUSED(len); return 0;
    }

private:
    float m_frequency = 440.0;
    float m_phase = 0.0;
};
#endif // MAINWINDOW_H

mainwindow.cpp

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QPainter>

MainWindow::MainWindow(QWidget *parent)
    : QMainWindow(parent)
    , ui(new Ui::MainWindow)
{
    ui->setupUi(this);

    // 1. Audio-Format definieren (Standard CD-Qualität)
    QAudioFormat format;
    format.setSampleRate(44100);
    format.setChannelCount(1);
    format.setSampleSize(16);
    format.setCodec("audio/pcm");
    format.setByteOrder(QAudioFormat::LittleEndian);
    format.setSampleType(QAudioFormat::SignedInt);

    // 2. Audio-Generator (Logik im Header) und Output initialisieren
    m_generator = new AudioGenerator(this);
    m_generator->open(QIODevice::ReadOnly);

    m_audioOutput = new QAudioOutput(format, this);
    m_audioOutput->start(m_generator);

    // 3. Slider-Verbindung: Ändert Tonhöhe und Grafik gleichzeitig
    connect(ui->freqSlider, &QSlider::valueChanged, this, [this](int value) {
        currentFreq = static_cast<float>(value);
        m_generator->setFrequency(currentFreq); // Ändert die Audio-Frequenz
        generateWaveform();                     // Berechnet neue Punkte für das Oszilloskop
        update();                               // Erzwingt das Neuzeichnen (paintEvent)
    });

    // Initiale Berechnung der Wellenform
    generateWaveform();
}

void MainWindow::generateWaveform() {
    waveformPoints.clear();
    // Wir nutzen die Breite des Fensters als Basis für die X-Achse
    for (int x = 0; x < width(); ++x) {
        // Die Konstante 3.14... ersetzt M_PI, falls Makros nicht gefunden werden
        float y = 80 * qSin(2 * 3.14159265 * currentFreq * (float)x / 10000.0);
        waveformPoints.append(QPointF(x, 200 + y));
    }
}

void MainWindow::paintEvent(QPaintEvent *event) {
    (void)event; // Verhindert Warnung über ungenutzten Parameter
    QPainter painter(this);
    painter.setRenderHint(QPainter::Antialiasing);

    // Zeichne den schwarzen "Bildschirm" des Oszilloskops
    painter.fillRect(0, 100, width(), 200, Qt::black);

    // Zeichne die grüne "Phosphor"-Linie
    painter.setPen(QPen(Qt::green, 2));
    painter.drawPolyline(waveformPoints.data(), waveformPoints.size());
}

MainWindow::~MainWindow() {
    m_audioOutput->stop(); // Audio-Stream sauber beenden
    delete ui;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61

<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
 <class>MainWindow</class>
 <widget class="QMainWindow" name="MainWindow">
  <property name="geometry">
   <rect>
    <x>0</x>
    <y>0</y>
    <width>800</width>
    <height>600</height>
   </rect>
  </property>
  <property name="windowTitle">
   <string>MainWindow</string>
  </property>
  <widget class="QWidget" name="centralwidget">
   <widget class="QSlider" name="freqSlider">
    <property name="geometry">
     <rect>
      <x>230</x>
      <y>460</y>
      <width>160</width>
      <height>16</height>
     </rect>
    </property>
    <property name="maximum">
     <number>2000</number>
    </property>
    <property name="orientation">
     <enum>Qt::Horizontal</enum>
    </property>
   </widget>
   <widget class="QLabel" name="label">
    <property name="geometry">
     <rect>
      <x>230</x>
      <y>440</y>
      <width>54</width>
      <height>17</height>
     </rect>
    </property>
    <property name="text">
     <string>Frequenz</string>
    </property>
   </widget>
  </widget>
  <widget class="QMenuBar" name="menubar">
   <property name="geometry">
    <rect>
     <x>0</x>
     <y>0</y>
     <width>800</width>
     <height>22</height>
    </rect>
   </property>
  </widget>
  <widget class="QStatusBar" name="statusbar"/>
 </widget>
 <resources/>
 <connections/>
</ui>

From linear to logarithmic

Human perception of pitch and loudness is logarithmic, so the slider must be mapped using an exponential function.

The standard approach:

\large \[f = f_{min} * (f_{max} / f_{min} )^{(slider/maxSlider)}\]

This is the valid approach for both, volume and frequency.

So next we show the both adapted files mainwindow.h and mainwindow.cpp

mainwindow.h

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>
#include <QVector>
#include <QPointF>
#include <QIODevice>

QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE

class QAudioOutput;
class QPaintEvent;

class AudioGenerator : public QIODevice
{
    Q_OBJECT

public:
    explicit AudioGenerator(QObject *parent = nullptr);

    void setFrequency(float frequency);
    void setAmplitude(float amplitude);

    qint64 readData(char *data, qint64 maxlen) override;
    qint64 writeData(const char *data, qint64 len) override;

private:
    float m_frequency = 440.0f;
    float m_phase = 0.0f;
    float m_amplitude = 8000.0f;
};

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    explicit MainWindow(QWidget *parent = nullptr);
    ~MainWindow() override;

protected:
    void paintEvent(QPaintEvent *event) override;

private:
    static float sliderToLogFrequency(int value, int minValue, int maxValue,
                                      float minFreq, float maxFreq);
    static float sliderToLogAmplitude(int value, int minValue, int maxValue,
                                      float minAmp, float maxAmp);
    void generateWaveform();

    Ui::MainWindow *ui = nullptr;
    AudioGenerator *m_generator = nullptr;
    QAudioOutput *m_audioOutput = nullptr;
    QVector<QPointF> waveformPoints;
    float currentFreq = 440.0f;
};

#endif // MAINWINDOW_H

mainwindow.cpp

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174

#include "mainwindow.h"
#include "ui_mainwindow.h"

#include <QAudioFormat>
#include <QAudioOutput>
#include <QPainter>
#include <QPaintEvent>
#include <QSlider>
#include <QtMath>

namespace {
constexpr float kMinFreq = 20.0f;
constexpr float kMaxFreq = 20000.0f;
constexpr float kMinAmp = 0.0f;
constexpr float kMaxAmp = 16000.0f;
constexpr int kFreqSliderDefault = 895; // ~440 Hz on a 0..2000 logarithmic slider
}

AudioGenerator::AudioGenerator(QObject *parent)
    : QIODevice(parent)
{
}

void AudioGenerator::setFrequency(float frequency)
{
    m_frequency = frequency;
}

void AudioGenerator::setAmplitude(float amplitude)
{
    m_amplitude = amplitude;
}

qint64 AudioGenerator::readData(char *data, qint64 maxlen)
{
    qint16 *samples = reinterpret_cast<qint16 *>(data);
    const int sampleCount = static_cast<int>(maxlen / static_cast<qint64>(sizeof(qint16)));

    for (int i = 0; i < sampleCount; ++i) {
        const float value = m_amplitude * qSin(m_phase);
        samples[i] = static_cast<qint16>(value);

        m_phase += static_cast<float>(2.0 * M_PI) * m_frequency / 44100.0f;
        if (m_phase >= static_cast<float>(2.0 * M_PI)) {
            m_phase -= static_cast<float>(2.0 * M_PI);
        }
    }

    return static_cast<qint64>(sampleCount) * static_cast<qint64>(sizeof(qint16));
}

qint64 AudioGenerator::writeData(const char *data, qint64 len)
{
    Q_UNUSED(data)
    Q_UNUSED(len)
    return 0;
}

MainWindow::MainWindow(QWidget *parent)
    : QMainWindow(parent)
    , ui(new Ui::MainWindow)
    , m_generator(new AudioGenerator(this))
{
    ui->setupUi(this);

    QAudioFormat format;
    format.setSampleRate(44100);
    format.setChannelCount(1);
    format.setSampleSize(16);
    format.setCodec("audio/pcm");
    format.setByteOrder(QAudioFormat::LittleEndian);
    format.setSampleType(QAudioFormat::SignedInt);

    m_generator->open(QIODevice::ReadOnly);
    m_generator->setAmplitude(8000.0f);

    m_audioOutput = new QAudioOutput(format, this);
    m_audioOutput->start(m_generator);

    ui->freqSlider->setRange(0, 2000);

    connect(ui->freqSlider, &QSlider::valueChanged, this, [this](int value) {
        currentFreq = sliderToLogFrequency(value,
                                           ui->freqSlider->minimum(),
                                           ui->freqSlider->maximum(),
                                           kMinFreq,
                                           kMaxFreq);
        m_generator->setFrequency(currentFreq);
        generateWaveform();
        update();
    });

    if (QSlider *volumeSlider = findChild<QSlider *>(QStringLiteral("volumeSlider"))) {
        connect(volumeSlider, &QSlider::valueChanged, this, [this, volumeSlider](int value) {
            const float amplitude = sliderToLogAmplitude(value,
                                                         volumeSlider->minimum(),
                                                         volumeSlider->maximum(),
                                                         kMinAmp,
                                                         kMaxAmp);
            m_generator->setAmplitude(amplitude);
        });
    }

    ui->freqSlider->setValue(kFreqSliderDefault);
    currentFreq = sliderToLogFrequency(ui->freqSlider->value(),
                                       ui->freqSlider->minimum(),
                                       ui->freqSlider->maximum(),
                                       kMinFreq,
                                       kMaxFreq);
    m_generator->setFrequency(currentFreq);
    generateWaveform();
}

MainWindow::~MainWindow()
{
    if (m_audioOutput != nullptr) {
        m_audioOutput->stop();
    }
    delete ui;
}

float MainWindow::sliderToLogFrequency(int value, int minValue, int maxValue,
                                       float minFreq, float maxFreq)
{
    if (maxValue <= minValue || minFreq <= 0.0f || maxFreq <= minFreq) {
        return minFreq;
    }

    const float normalized = static_cast<float>(value - minValue)
                           / static_cast<float>(maxValue - minValue);
    return minFreq * qPow(maxFreq / minFreq, normalized);
}

float MainWindow::sliderToLogAmplitude(int value, int minValue, int maxValue,
                                       float minAmp, float maxAmp)
{
    if (maxValue <= minValue || maxAmp < minAmp) {
        return minAmp;
    }

    const float normalized = static_cast<float>(value - minValue)
                           / static_cast<float>(maxValue - minValue);

    if (normalized <= 0.0f) {
        return minAmp;
    }

    return minAmp + (maxAmp - minAmp) * qPow(normalized, 2.0f);
}

void MainWindow::generateWaveform()
{
    waveformPoints.clear();
    waveformPoints.reserve(width());

    for (int x = 0; x < width(); ++x) {
        const float y = 80.0f * qSin((2.0f * static_cast<float>(M_PI) * currentFreq * static_cast<float>(x)) / 10000.0f);
        waveformPoints.append(QPointF(x, 200.0 + y));
    }
}

void MainWindow::paintEvent(QPaintEvent *event)
{
    Q_UNUSED(event)

    QPainter painter(this);
    painter.setRenderHint(QPainter::Antialiasing);
    painter.fillRect(0, 100, width(), 200, Qt::black);
    painter.setPen(QPen(Qt::green, 2));

    if (!waveformPoints.isEmpty()) {
        painter.drawPolyline(waveformPoints.constData(), waveformPoints.size());
    }
}
